SounDigital · EVOX · amplifier

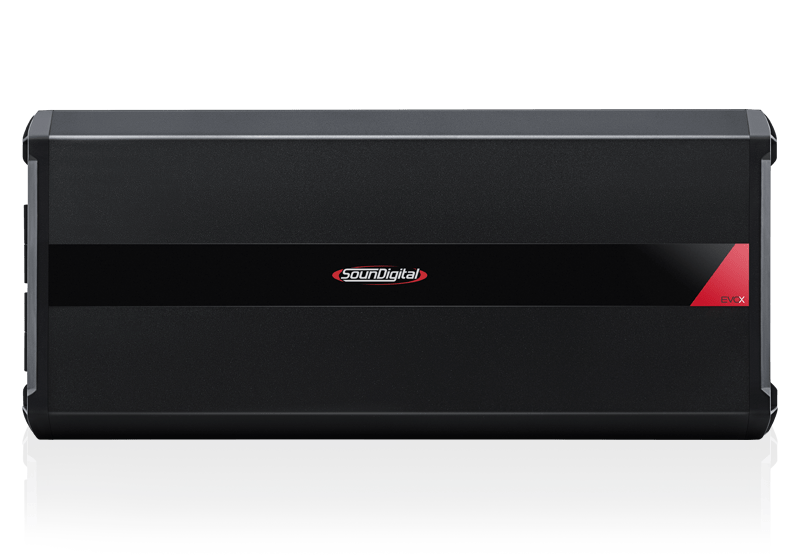

12000.1 EVOX

$2,250

In stock · Ships nationwide from Venetia, PA

• The 12000.1 EVOX is a compact, modern amplifier that delivers 12000W RMS of power over 1 channel.The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. Specifications: 12000.1 EVOX – 1 OHM Power @ 4Ω: 1 X 5227W RMS Power @ 2Ω: 1 X 7920W RMS Power @ 1Ω: 1 X 12000W RMS 12000.1 EVOX – 2 OHMS Power @ 4Ω: 1 X 7920W RMS Power @ 2Ω: 1 X 12000W RMS Power @ 1Ω: N/A Frequency Response (-3dB): 5Hz ~ 500Hz Subsonic Filter (12dB/octave): 5Hz ~ 30Hz Low Pass Filter (12dB/octave): 50Hz ~ 500Hz Operating Voltage: 8V ~ 16V SNR: 76dB Input Sensitivity (RCA): 0.2V ~ 4V Current Draw (music): 627A Current Draw (max): 1253A Total Efficiency: 76% Damping Factor (@100Hz nominal impedance) 200 Power Cable: 95mm² (0000 AWG) Speaker Cable: 16mm² (5 AWG) Remote Cable: 1.5mm² (15 AWG) Recommended Fuse (music): 2 x 350A Recommended Battery (minimum): 650Ah Width: 8.9 in / 22.4 cm Length: 20.8 in / 53 cm Height: 2.8 in / 7.1 cm Weight: 7.3 kg / 16.1 lb

Impedance: 1 ohm / 2 ohm

Not sure what fits? Text (412) 512-2339 with your year and model — we'll spec it to your bike.
